Class DQ20B-VSP Nominal drilling depth range (114mm drill pipe) 2000m Rated Load 1350 KN Working Height (96” Lifting Link) 4565mm Rated Continuous Output Torque 27.5 KN.m Maximum Breaking Torque 41 KN.m Static maximum braking torque 27.5 KN.m Speed Range of Main Shaft(infinitely adjustable) 0~200 r/min Back clamp clamping range of drill pipe 85-187mm Mud circulation channel rated pressure 35/52 MPa Hydraulic system working pressure 0~14 Mpa Main motor rated power 29...
Class DQ70BS-VSP Nominal drilling depth range (114mm drill pipe) 7000m Rated Load 4500 KN Working Height (96” Lifting Link) 6700mm Rated Continuous Output Torque 78 KN.m Maximum Breaking Torque 117KN.m Static maximum braking torque 78 KN.m Rotating Link Adaptor Rotation Angle 0-360° Speed Range of Main Shaft(infinitely adjustable) 0~220 r/min Back clamp clamping range of drill pipe 85-220mm Mud circulation channel rated pressure 52 MPa Hydraulic system working pressu...
Class DQ30BQ-VSP Nominal drilling depth range (114mm drill pipe) 3000m Rated Load 1800 KN Working Height (96” Lifting Link) 5205mm Rated Continuous Output Torque 27.5 KN.m Maximum Breaking Torque 41 KN.m Static maximum braking torque 27.5 KN.m Rotating Link Adaptor Rotation Angle 0-360° Speed Range of Main Shaft(infinitely adjustable) 0-200 r/min Back clamp clamping range of drill pipe 85mm-187mm Mud circulation channel rated pressure 35/52 MPa Hydraulic system...
Class DQ30B-VSP Nominal drilling depth range (114mm drill pipe) 3000m Rated Load 1800 KN Working Height (96 Lifting Link) 4565mm Rated Continuous Output Torque 27.5 KN.m Maximum Breaking Torque 41 KN.m Static maximum braking torque 27.5 KN.m Speed Range of Main Shaft(infinitely adjustable) 0~200 r/min Back clamp clamping range of drill pipe 85-187mm Mud circulation channel rated pressure 35 MPa IBOP rated pressure(Hydraulic / Manual) 105 MPa Hydraulic system w...
Class DQ40B-VSP Nominal drilling depth range (114mm drill pipe) 4000m~4500m Rated Load 2666 KN Working Height (96” Lifting Link) 5770mm Rated Continuous Output Torque 50 KN.m Maximum Breaking Torque 75 KN.m Static maximum braking torque 50 KN.m Rotating Link Adaptor Rotation Angle 0-360° Speed Range of Main Shaft(infinitely adjustable) 0-180r/min Back clamp clamping range of drill pipe 85mm-187mm Mud circulation channel rated pressure 35/52 MPa Hydraulic system worki...
Class DQ50BQ-VSP Nominal drilling depth range (114mm drill pipe) 5000m Rated Load 3150 KN Working Height (96” Lifting Link) 6600mm Rated Continuous Output Torque 70 KN.m Maximum Breaking Torque 100 KN.m Static maximum braking torque 70 KN.m Rotating Link Adaptor Rotation Angle 0-360° Speed Range of Main Shaft(infinitely adjustable) 0~220 r/min Back clamp clamping range of drill pipe 85-220mm Mud circulation channel rated pressure 35/52 MPa Hydraulic system working pr...
Class DQ50B-VSP Nominal drilling depth range (114mm drill pipe) 5000m Rated Load 3150 KN Working Height (96” Lifting Link) 6700mm Rated Continuous Output Torque 51 KN.m Maximum Breaking Torque 76.5 KN.m Static maximum braking torque 51 KN.m Rotating Link Adaptor Rotation Angle 0-360° Speed Range of Main Shaft(infinitely adjustable) 0~180 r/min Back clamp clamping range of drill pipe 85-220mm Mud circulation channel rated pressure 35/52 MPa Hydraulic system working pr...
TPEC Top Drive Spare Parts list: PN. Name 1.07.14.001 Brake block 1.07.08.002 key 2.3.04.003 Brake (bracket) 2.4.25.011 Steel pipe u 2.4.25.025 Steel pipe (H) 2.4.25.013 Steel pipe П 2.4.34.073 Fittings, cross-over sub 2.4.34.047 Fittings, cross-over sub 2.4.34.074 Fittings, four-way sub 2.4.34.089 Pipe fitting,tee sub 1.10.05.007 pulley 1.03.15.204 Lock nut 1.08.10.005 IBOP actuator 1.08.03.013 Upper IBOP 1.08.04.008 Lower IBOP 2.4.25.028 Steel pipe 2.4.25.018 Steel pipe c 2.4.25.027 Steel p...
TESCO Top Drive Spare Parts list: 1320014 Cylinder Lock, P/H, EXI/HXI 1320015 Ring,Snap,Internal,Truarc N500-500 820256 Ring,Snap,Internal,Truarc N500-150 510239 Screw,cap Nex HD 1″-8UNCx8,5,GR8,PLD,DR,HD 0047 GAUGE Lig Filled 0-300Psi/kPa 2,5″ODx1/4″MNPT,LM 0072 TERMO 304 S/S,1/2×3/4×6.0 LAG 0070 TERMOMETR BIMETEL 0-250, 1/2″ 1320020 VALVE CATRIDGE RELIEF 400Psi,50GPM SUN RPGC-LEN 0062 GAUGE Lig Filled 0-100Psi/kPa 2,5″ODx1/4″MNPT,LM 1502 Fiting ...
JH Top Dive Spare Parts List P/N. Name B17010001 Straight through pressure injection cup DQ50B-GZ-02 Blowout preventer DQ50B-GZ-04 Locking device assembly DQ50-D-04(YB021.123) pump M0101201.9 O-ring NT754010308 Flushing pipe assembly NT754010308-VI Spline shaft T75020114 Tilt cylinder flow control valve T75020201234 Hydraulic cylinder T75020401 Locking device assembly T75020402 Anti loosening fixing sleeve T75020403 Anti loosening chuck T75020503 Backup tong locating pin T75020504 Guide bol...
HH Top Drive Spares Parts list: Die plate 3.5 “dq020.01.12.01 № 1200437624 dq500z Die plate 4,5 “№ 1200437627 dq020.01.13.01 dq500z Die plate 5,5 “№ 1200440544 dq020.01.14.01 dq500z Die plate 6-5 / 8 “dq027.01.09.02 № 1200529267 dq500z Jaw plate 120-140 3,5 “dq026.01.09.02 № 1200525399 Jaw plate 160-180 4,5 “dq026.01.07.02 № 1200525393 dq500z Jaw plate 180-200 5,5 “№ 1200525396 dq026.01.08.02 dq500z Die bracket 6-5 / 8 “dq027.01.09.03 № 12005292...
Canrig Top Drive Spare Parts list: E14231 Cable N10007 Temperature Sensor N10338 Display Module N10112 Module E19-1012-010 Relay E10880 Relay N21-3002-010 Analog input module N10150 CPU M01-1001-010 “BRG,TPRD ROL,CUP\CANRIG\M01-1001-010 1EA M01-1063-040, AS A SET, REPLACES BOTH THE M01-1000-010 AND M01-1001-010 (M01-1001-010 HAS BECOME OBSOLETE)” M01-1002-010 BRG, TPRD ROL, CONE, 9.0 x 19.25 x 4.88 M01-1003-010 BRG, TPRD ROL, CUP, 9.0 x 19.25 x 4.88 829-18-0 PLATE, RETAINING, BUW ...
SHANDONG VS PETROLEUM TECHNOLOGY CO., LTD.
The company is a subsidiary of HERIS Group, Group was founded in 2010.
The company’s main business includes top drive manufacture, maintenance,top drive leasing, second-hand top drive sales, drilling equipment and top drive parts supply.

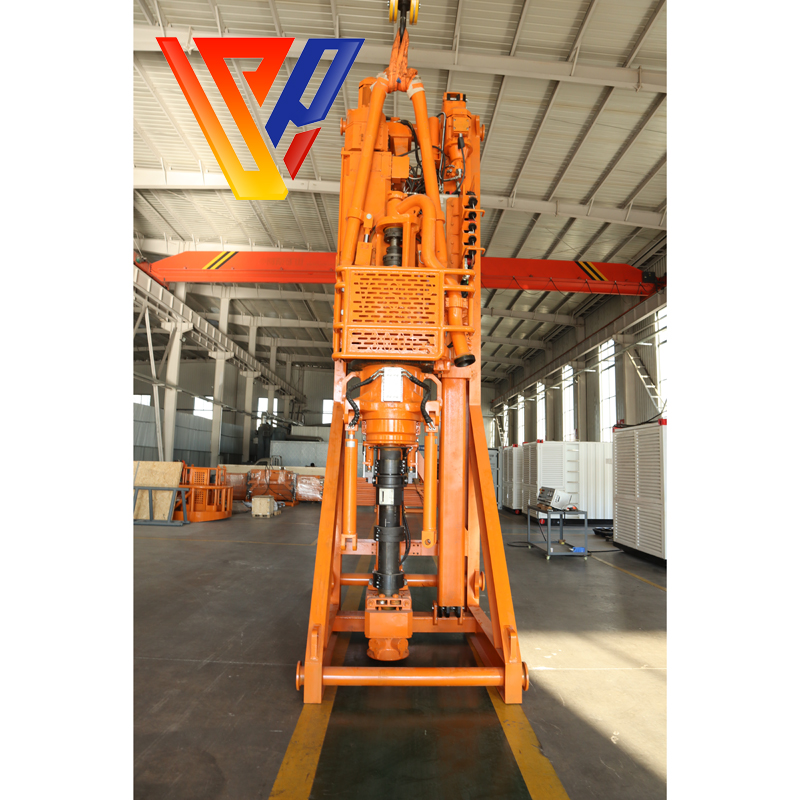

1.Top Drive Systems: Full range from 180 to 550 tons.
2.Top Drive Spare Parts: Comprehensive support for Varco, tesco, BPM, JH, and TPEC systems.
3.Technical Services: Expert maintenance, repair, and technology solutions for top drives.
4.Mud Pump & Disc Brake Parts: High-performance spare components.
5.Drill Rig Components: Reliable parts for enhanced operational efficiency.
